Ab sofort lieferbar! Roland V-02HD MULTI-FORMAT VIDEO MIXER



----------- >       Link zum Shop

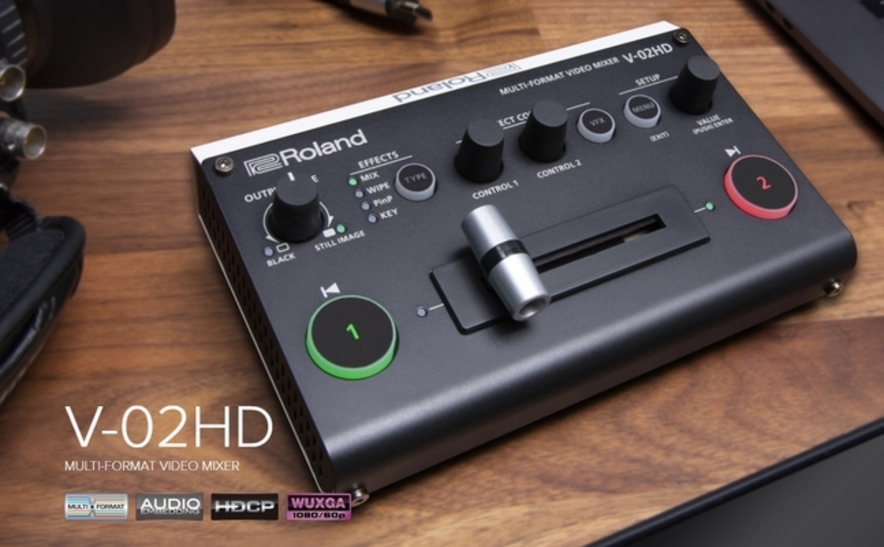

V-02HD
Multi-format Video Mixer

The versatile V-02HD multi-format video mixer replaces several standalone units as an all-in-one switcher, scaler and expander with audio processing and video effects. This portable-yet-powerful device lets you concentrate on producing your event or shooting your scenes, rather than trouble-shooting your gear.






Real-time professional effects


• Reduce post-production editing
• Add effects to camera's output and record the result
• 18 on-board effects
• Add titles, pixellation, green screen and more

Make two-camera shoots simple


• Switch between two HDMI sources
• Mix audio from both cameras and external sources
• Connect to recorders or live-streaming


Seamless switching

• Perfect presentation partner
• Pro cross-dissolve switchover between sources
• Automatically accepts, switches and outputs any HDMI source





VIDEO
Video Processing
4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors
INPUT 1--2: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
Output Connectors
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
* HDCP Supported
* Multi-format Supported
Input Formats
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Output Formats
480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* Conforms to VESA DMT Version 1.0 Revision 11.
* The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.
* 1920 x 1200/60 Hz: Reduced blanking
Video Effects
Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOZAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FINDEDGE, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing
Sampling rate: 24 bits/48 kHz
Audio formats
Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors
INPUT 1--2: HDMI Type A x 2
AUDIO IN: Stereo miniature type
Output Connectors
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
PHONES: Stereo miniature type
Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance
AUDIO IN: 45 k ohms
Output Level
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
PHONES: 10 ohms
Audio Effects
Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
OTHERS
Other Connectors
USB MEMORY: USB B Type (for backup from PC)
CTL/EXP:1/4-inch TRS phone type
Other Functions
Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Scan
Auto Input Detect
Power Supply
AC Adaptor
Current Draw
1.1 A
Power Consumption
10.0 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
160 (W) x 108 (D) x 51 (H) mm
6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches
Weight (excluding AC adaptor)
0.6 kg
1 lbs 6 oz
Accessories
Startup Guide
AC adaptor
Power cord
Cord hook
