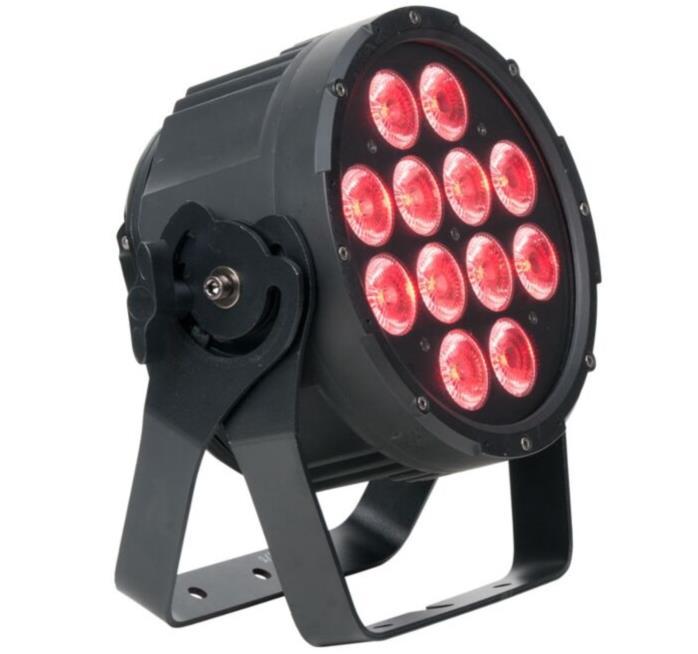

ELATION Sixpar 200 IP 12x 12 W RGBAW+UV LEDs, 15°,DMX 512-A (RDM), schwarz,IP 65

FEATURES
IP65 Rated
15° Beam 25° Field Angles
5 Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life

PHOTOMETRIC DATA
22,250 LUX 2.067 FC @3.3 (1m) (15° Full ON)
5,600 LUX 520 FC @6.6 (2m) (15° Full ON)
2,500 LUX 232 FC @9.8 (3m) (15° Full ON)
1,360 LUX 126 FC @13.1 (4m) (15° Full ON)
930 LUX 86 FC @16.5 (5m) (15° Full ON)

EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
IP DMX In/Out
IP Power In/Out

SIZE / WEIGHT
Length: 12.3 (313mm)
Width: 6.2 (157mm)
Vertical Height: 11.8 (300mm)
Weight: 12.6 lbs. (5.7 kg)

ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
150W Max Power Consumption
Power Linking: 8pcs @110V / 18pcs @240V
68°F to 113°F (20°C to 45°C)

APPROVALS / RATINGS
CE | IP65 |

INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)

INCLUDED ITEMS
Male Schuko to IP Female Power Cable 6,6 ft. (2m)
Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m
