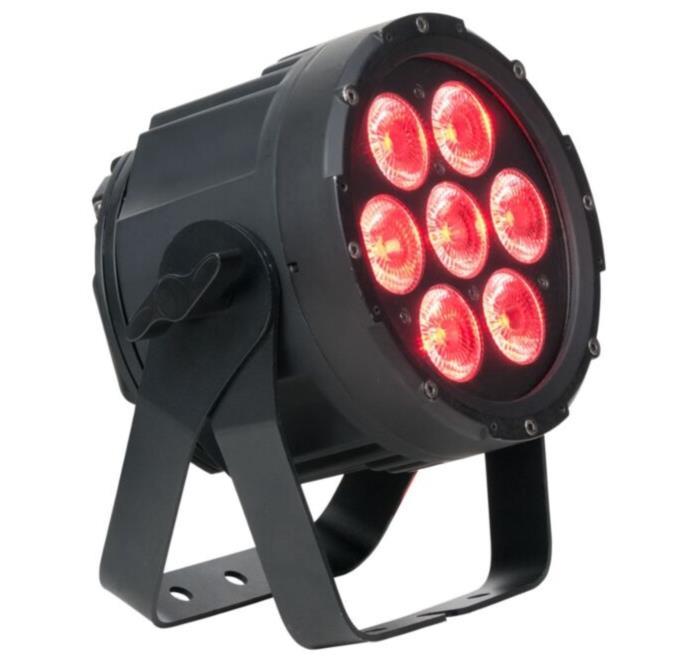

ELATION Sixpar 100 IP 7x 12 W RGBAW+UV LEDs, 15°,DMX 512-A (RDM), schwarz,IP 65

FEATURES
IP65 Rated
15° Beam 25° Field Angles
5 Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE
(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life

PHOTOMETRIC DATA
12,850 LUX 1,194 FC @3.3 (1m) (15° Full ON)
2,880 LUX 268 FC @6.6 (2m) (15° Full ON)
1,401 LUX 130 FC @9.8 (3m) (15° Full ON)
848 LUX 79 FC @13.1 (4m) (15° Full ON)
571 LUX 54 FC @16.5 (5m) (15° Full ON)

EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
IP DMX In/Out
IP65 Power Cable In/Out

SIZE / WEIGHT
Length: 10.1 (257mm)
Width: 6.2 (158mm)
Vertical Height: 9.6 (243mm)
Weight: 9.5 lbs. (4.3 kg)

ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
89W Max Power Consumption
Power Linking: 12pcs @110V / 25pcs @240V
68°F to 113°F (20°C to 45°C)

APPROVALS / RATINGS
CE | IP65 |

INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)

INCLUDED ITEMS
Male Schuko to IP Female Power Cable 6,6 ft. (2m)
Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)
